D4 Series Series

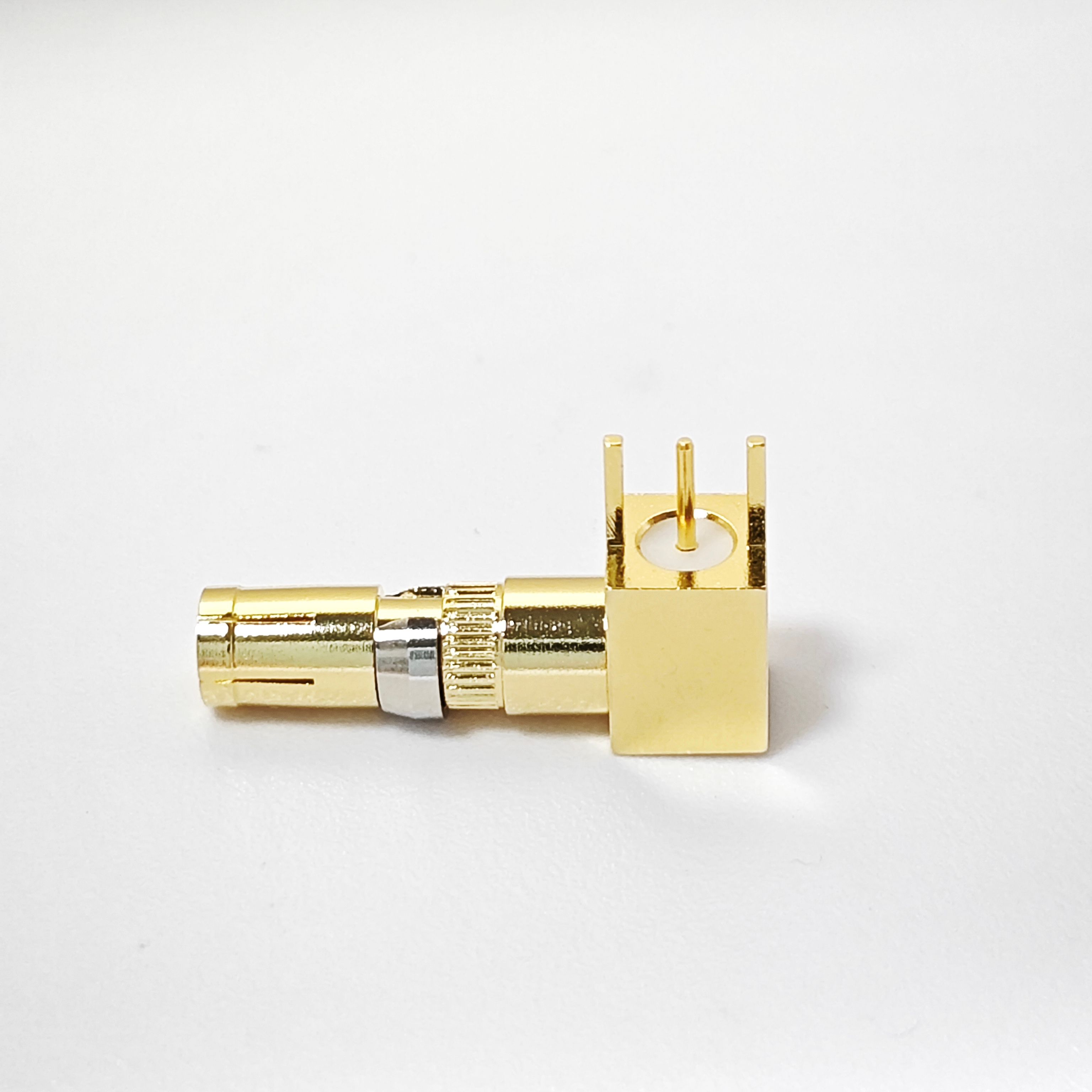

D4-JWE RF Coaxial Connectors
Model: D4-JWE
Specifications
Frequency0–6 GHz
VSWR≤1.3
Insulation Resistance≥5000 MΩ
Contact ResistanceCenter ≤3 mΩ, Outer ≤2 mΩ
Working Voltage335 V
Withstanding Voltage1000 V
Insulation MaterialPTFE
Conductor MaterialBrass
PlatingGold plating
BodyBrass
Operating Temp.-55~+155 ℃
